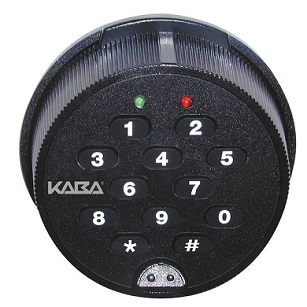

KABA MAS AUDICON 552 Electronic Lock
This U.L. Type 1 rated safe lock easily replaces traditional mechanical Group I and Group II locks. The Auditcon Model 552 is perfect for security applications where shared access and audit capability are necessary.
- 99 users/400 record audit
- 8 digit access combination
- Faster power-up
- Replaces mechanical Group I and Group II locks
- Wrong try lockout (5 attempts) for three minutes
- Dead bolt & slide bolt available
- UL listed, Type 1 high security electronic locks
- UL/VdS/DNV/ECB•S certification
Features
Numerical Keypad
Quick Entry.
Wrong Try Lockout
The lock will not allow access to any user for a period of 3 minutes after 5 incorrect combinations are entered. Any additional consecutive failed entry attempts result in another 3 minute lockout.
Easy Retrofit
The lock case has the same footprint as most mechanical locks making it easy to install.
Users
Up to 99 users.
8 Digit Access
Users have an 8 digit combination which includes a 2 digit user ID and a 6 digit user selected PIN.
Audit Trail
Number of entries/activities is 400 records in sequential order.
Available PC Software
Print, display or file the lock audit reports using a program which runs under Microsoft Windows® Software.
- Program Lock Setup Options
- Upload Lock Time/Date
- Add/Delete Users
- Upload Time Windows
- Audit Download Reports
- User Table Download Reports
Supervisor/Subordinate ModeAllows access by a subordinate only after being enabled by a supervisory combination. Once enabled, a subordinate user has access to the lock during any valid opening time.
Dual Custody
Two Person Integrity, which requires two users to open the lock.
Alarm Interface
(Optional) Activates the lock's duress condition, sending a silent alarm, when combined with a connection to an existing alarm system.
Time Delay Mode
Programmable 1-99 minutes before access is allowed. (Purchased separately)
Technical Data
| Electronic combination lock |
|---|
| Auditcon 552 - standard |
| Input Units |
|---|
| Round, buttons in the face of the lock |
| Vertical, buttons across the top of the lock |
| Lock |
|---|
| Dead bolt |
| Slide bolt |
| Spindle/cable |
|---|
| For door thickness up to 220 mm |
| For door thickness up to 460 mm |
| Accessories |
|---|
| Auditcon 2 Series Software Programming and audit software; up-/download using SA key. Operates on Microsoft Windows® operating systems (XP Pro 32-bit; SP 2 and higher, Vista 32-bit or 64-bit; Business edition). (includes CD with software, instructions, SA key, 2-port key reader and USB adapter) • Basic lock settings • Date and time programming • Add/Delete users • Time lock functions • Audit readout • User profile readout |
| Auditcon 2 Series Software upgrade Prerequisite: Auditcon Audit only or Auditcon 2 software (older versions) Programming and audit software; up-/download using SA key. Operates on Microsoft Windows® operating systems (XP Pro 32-bit; SP 2 and higher, Vista 32-bit or 64-bit; Business edition). (includes CD with software, instructions and USB adapter) • Basic lock settings • Time and date • Add/Delete users • Time lock functions • Audit readout • User profile readout |
| SA key – To up-/download data |
| B key – To upload date/time to model 552 |
| Duress alarm interface – Interface for duress alarm (silent alarm) |
| Time delay display – LCD-display for time delay and opening window |
Functionality
| Code Functions |
|---|
| Single mode Dual mode Master/Manager control Supervisor/Subordinate mode (shift mode) Courier codes (interruption of time delay) Shelve function Wrong try lockout after 5 false codes Duress alarm (silent alarm) |
| Time Lock Functions |
|---|
| Time delay Opening window Time windows Time window lockout Immediate time locking |
